Kaufman Trailers

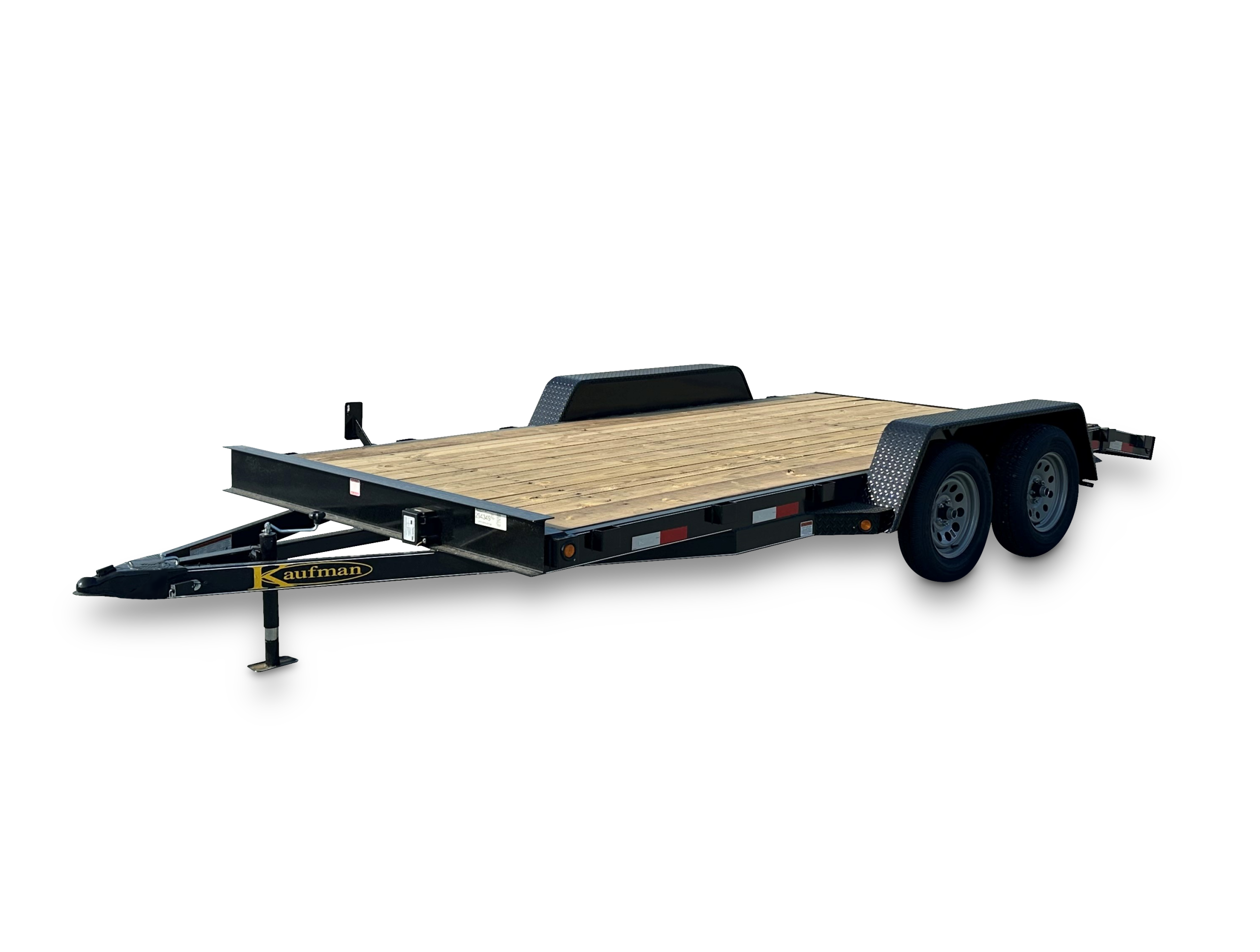

Standard 12000 GVWR Flatbed Utility Trailer – 20 ft.
$5,190.00 Factory Direct
Trailer Description
Kaufman Trailers Standard 12000 GVWR Flatbed Utility Trailer is constructed with a 5″ channel frame with 3″ channel crossmembers on 24 in. centers with a 5″ channel full length wrap-around tongue. This is the same frame as the 10000 GVWR Standard model. The big difference on this Standard 12000 GVWR Flatbed Utility Trailer is that the running gear upgrades to 6K 8 lug axles with 235/85 load range E radial tires. A premium tire upgrade is also available on this model. Standard length is 20 ft. Standard features include a fixed 2 5/16″ A-frame coupler, swing up jack, heavy duty diamond plate fenders, stake pockets, and pressure treated wood flooring. A standard dovetail with slide in loading ramps makes loading your car, small tractor, or other equipment a breeze on this Flatbed Utility Trailer.
Warning – you must block under the back of the trailer for loading heavier vehicles on this 5″ frame model.
Premium Tire Upgrade Available
VIEW OUR ENTIRE LINE OF UTILITY TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 12,000 |
| Electrical | Rubber mounted sealed beam lighting |
| Frame | 5 in. channel frame - 3 in. channel crossmembers 24 in. o.c. |
| Dovetail | 2 ft. |
| Upper Deck | N/A |
| Side Rail | N/A |
| Tongue | 5 in. channel wrap-around tongue |
| Tires | 235/80 R16 LRE (3,520) |
| Floors | Treated wood floor |
| Coupler | 2-5/16 a-frame coupler |
| Safety Chains | Heavy duty safety chains |
| Ramps | 5 ft. slide in |
| Tie Downs | Stake pockets |
| Deck Length | 20 ft. |
| Deck Height | 26 in. |
| Deck Width | 82 in. |
| Fenders | Heavy duty diamond plate fenders |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Silver or White mod (based on availability) |
| Jack | Swing up jack |
| Axles | 2-6,000 lb. e-z lube axles |
| Suspension | Double eye springs |
| Toolbox | N/A |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $210.00 |
| Removable fenders (each) | $100.00 |
| 6K Winch | $950.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FAW-6K-16S | 16 ft. | $5,170.00 | Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle |
| FAW-6K-18S | 18 ft. | $5,180.00 | Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle |
| FAW-6K-20S | 20 ft. | $5,190.00 | Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle |
