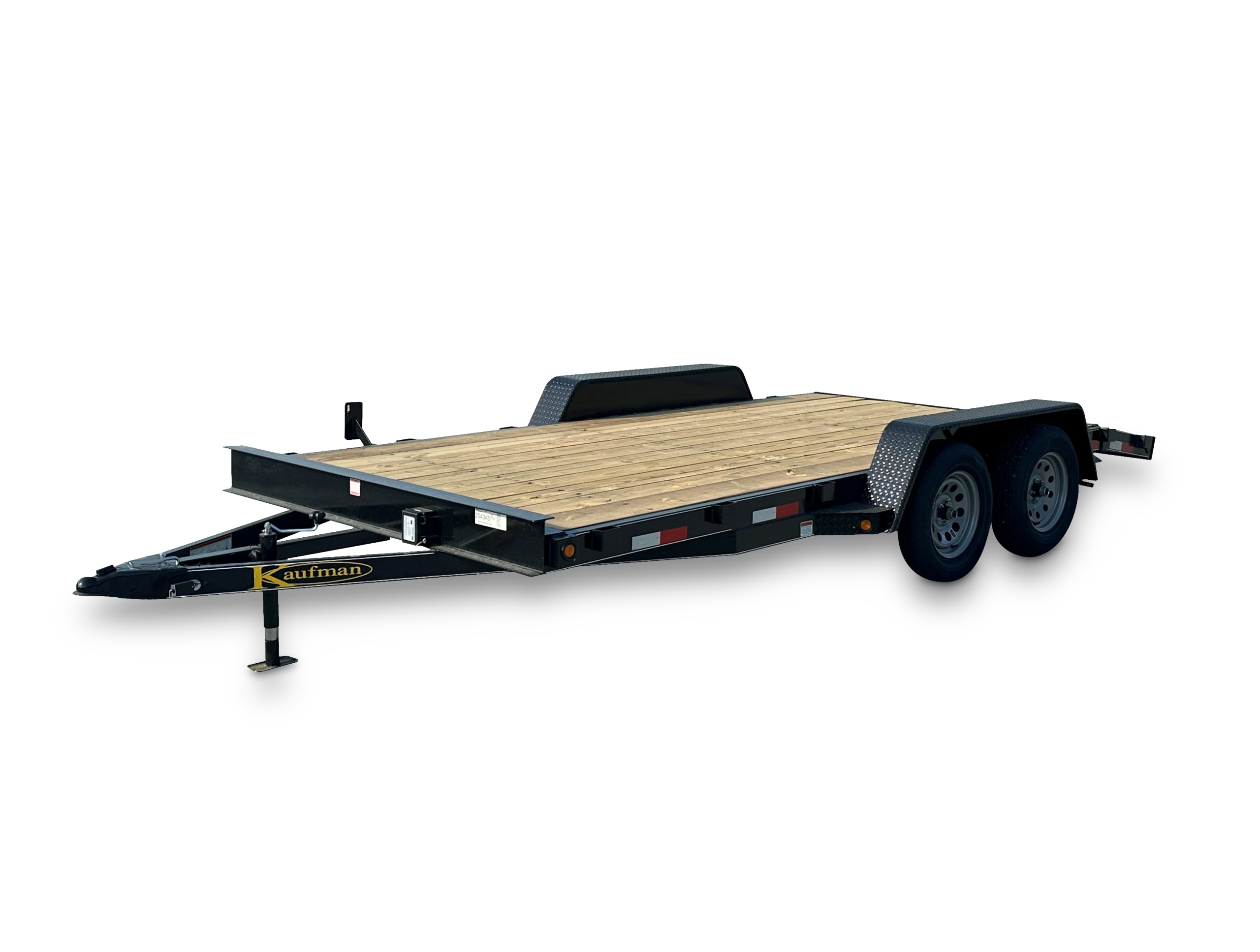

Standard 10000 GVWR Flatbed Utility Trailer – 20 ft.
$4,690.00 Factory Direct
Trailer Description
Kaufman Trailers Standard 10000 GVWR Flatbed Utility Trailer is constructed with a 5″ channel frame with 3″ channel crossmembers. Tongue size increases to a 5″ channel full length wrap-around on this model. Running gear upgrades to 5.2K axles with 225/15 load range D radial tires and 20′ length. Standard features include a fixed 2 5/16″ A-frame coupler, swing up jack, heavy duty diamond plate fenders, stake pockets, and pressure treated wood flooring. A standard dovetail with slide in loading ramps makes loading your car or small tractor a breeze on this Standard 10000 GVWR Flatbed Utility Trailer.
VIEW OUR ENTIRE LINE OF UTILITY TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 10,000 lb. |
| Electrical | DOT approved lights, wiring, and connectors |
| Frame | 5 in channel frame, with 3 in. channel crossmembers 24"o.c. |
| Dovetail | 2 ft. |
| Upper Deck | N/A |
| Side Rail | N/A |
| Tongue | 5 in. Channel wrap around |
| Tires | 225/75 R15 (2,540 lb.) Radial |
| Floors | 2 in. Treated Wood |
| Coupler | 2-5/16 Ball a-frame coupler |
| Safety Chains | Heavy duty safety chains |
| Ramps | 60 in. x 14 in. Slide in ramps, with 2 in. x 2 in. x 3/8 in. angle runners |
| Tie Downs | Stakepockets |
| Deck Length | 20 ft. (18 flat + 2 ft. dovetail) |
| Deck Height | 22 in. |
| Deck Width | 82 in. Between fenders |
| Fenders | Heavy duty diamond plate fenders |
| Lower Deck | N/A |
| Brakes | Standard all wheel brakes |
| Tailgate | N/A |
| Wheels | Silver or white mod (Based on stock) |
| Jack | 2,000 lb. Swing up jack |
| Axles | 2-5,200 lb. e-z lube axles |
| Suspension | Double eye springs |
| Toolbox | N/A |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $160.00 |
| Removable fenders (each) | $100.00 |
| 6K Winch | $950.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FAW-5.2K-16S | 16 ft. | $4,670.00 | Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle |
| FAW-5.2K-18S | 18 ft. | $4,680.00 | Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle |
| FAW-5.2K-20S | 20 ft. | $4,690.00 | Tongue: 5 in. Channel Frame: 5 in. Channel Crosspiece: 3 in. Channel Centers: 24 in. Ramp Runners: 2 in. x 2 in. x 3/8 in. Angle |
