Kaufman Trailers
Deluxe 38000 GVWR 30 ft Tandem Dual Gooseneck Trailer – Two 15K
$20,990.00 Factory Direct
Price Shown Does Not Include FET
Kaufman Trailer’s Deluxe 38000 GVWR Tandem Dual Gooseneck Trailer is available in 30′, 35′, and 40′ lengths. This is the heaviest electric brake trailer we offer. The main frame is 14″ beams at 22 PPF on the 30′ length, stepping up to 26 PPF on the 35′ and 40′ lengths. Crossmembers are 4″ channel pierced on 16″ centers and heavy duty 8″ channel outer rails. We use a Hutchens heavy duty slipper spring suspension. The 17.5 LRH tires are on heavy duty hub piloted wheels. There is 25′ of flatbed with a 5′ cleated iron dovetail. Ramps are 66 in. long x 23 in. wide heavy duty cleated flip up with spring assist. They are built with 6 in. channel ramp runners. Wiring on the Deluxe 38000 GVWR Tandem Dual Gooseneck Trailer is a sealed modular harness with lifetime LED lights. Jacks are dual speed heavy duty 25K capacity, just like are used on semi trailers. A tool tray with lockable lid, stake pockets with rub rail, and treated flooring complete the standard features.
VIEW OUR ENTIRE LINE OF GOOSENECK TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 38,000 lb. Load capacity is 30,000 lb. with a 8,000 lb. hitch load. |
| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 14 in. Pierced i-beam on 30' - 22 PPF. 26 PPF on 35' and 40'. 4 in. channel crossmembers 16 in. on center |
| Dovetail | 5 ft. 6 in. Self-cleaning cleated angle iron - 6 in. channel ramp runners |
| Upper Deck | N/A |
| Side Rail | 8 in. channel |
| Tongue | 12x19 PPF I-beam gooseneck with 14x26 PPF uprights |
| Tires | 215/75R 17.5 LRH - 4540 lb. capacity per tire |

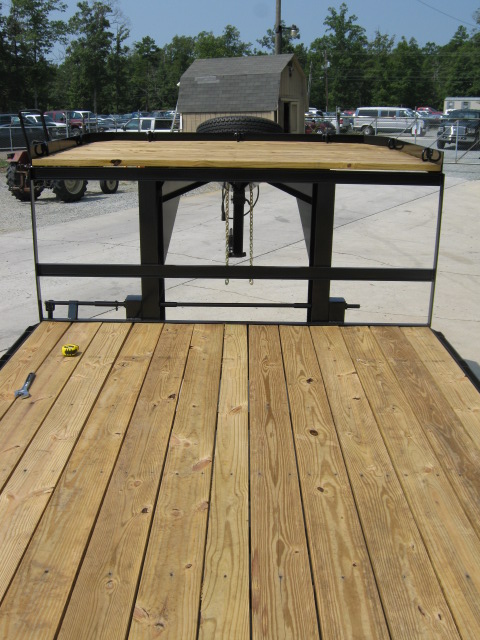

| Floors | 2 in. Treated Wood |
| Coupler | 3 in. 40,000 GVWR adjustable ball coupler or SAE 2 in. kingpin |
| Safety Chains | Heavy duty safety chains |
| Ramps | 66 in. x 23 in. Heavy duty cleated flip up ramps, with spring assist - built with 6 in. channel ramp runners |

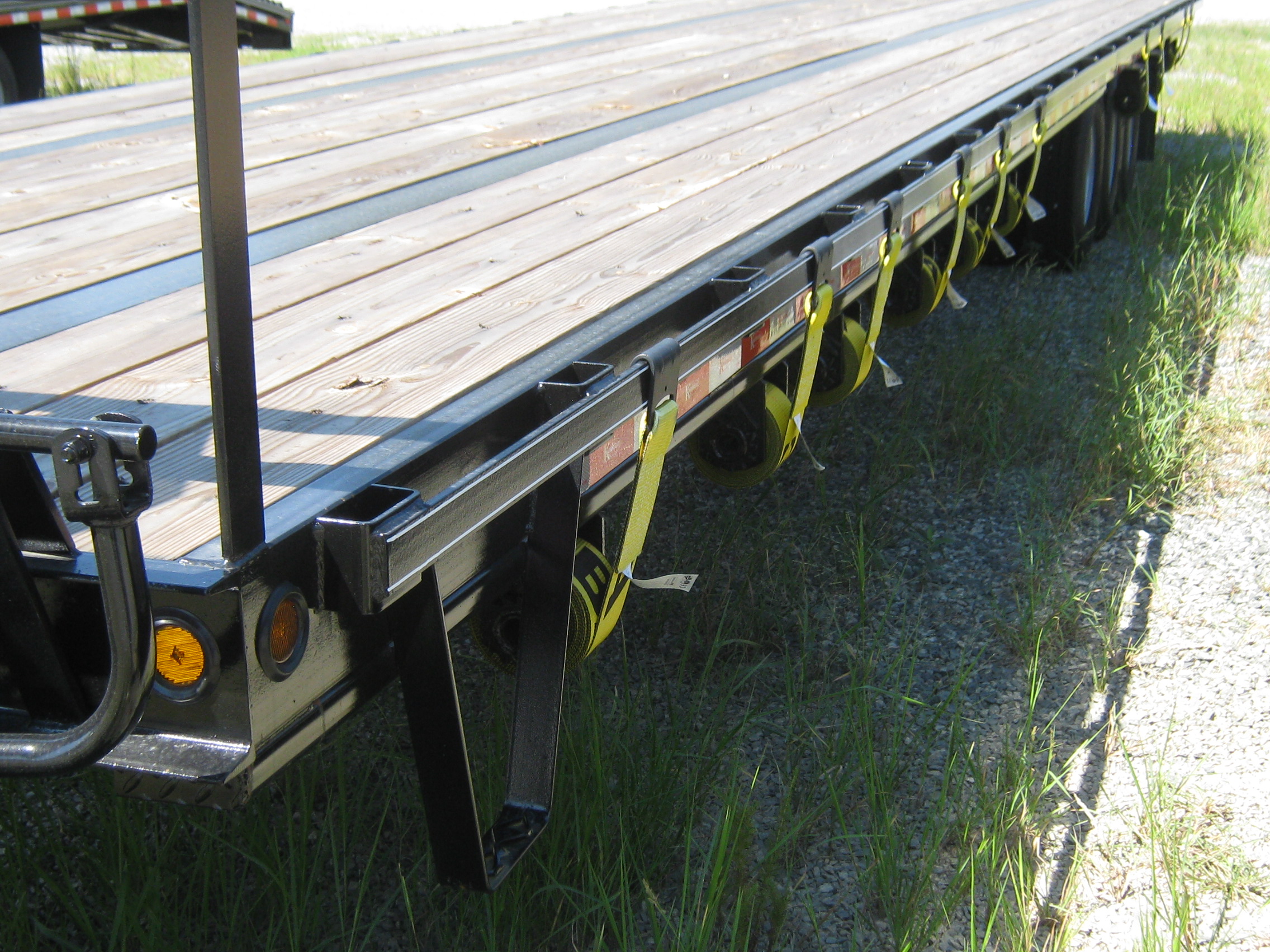

| Tie Downs | Stake pockets and Rubrail |
| Deck Length | 30 ft. (25 ft. flat + 5 ft. dovetail) |
| Deck Height | 37 in. With side steps standard |
| Deck Width | Maximum 102 in. |
| Fenders | N/A |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |
| Wheels | Heavy duty bud style dual wheels |
| Jack | Dual 25,000 lb. two speed jacks |
| Axles | 2- 15,000 lb. Oil bath Dexter axles |
| Suspension | Hutchens style heavy duty adjustable suspension with three leaf 20,000 lb. capacity springs - 48 in. spacing |
| Toolbox | Chain box with lockable lid standard |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $400.00 |
| 9K Winch | $1,250.00 |
| 6 ft. x 8 ft. Deck on neck | $600.00 |
| Torque tube - required for deck on neck | $100.00 |
| Fork holders (requires measurement information) | $200.00 |
| Full Width MEGA RAMPS with spring assist in both directions | $1,600.00 |

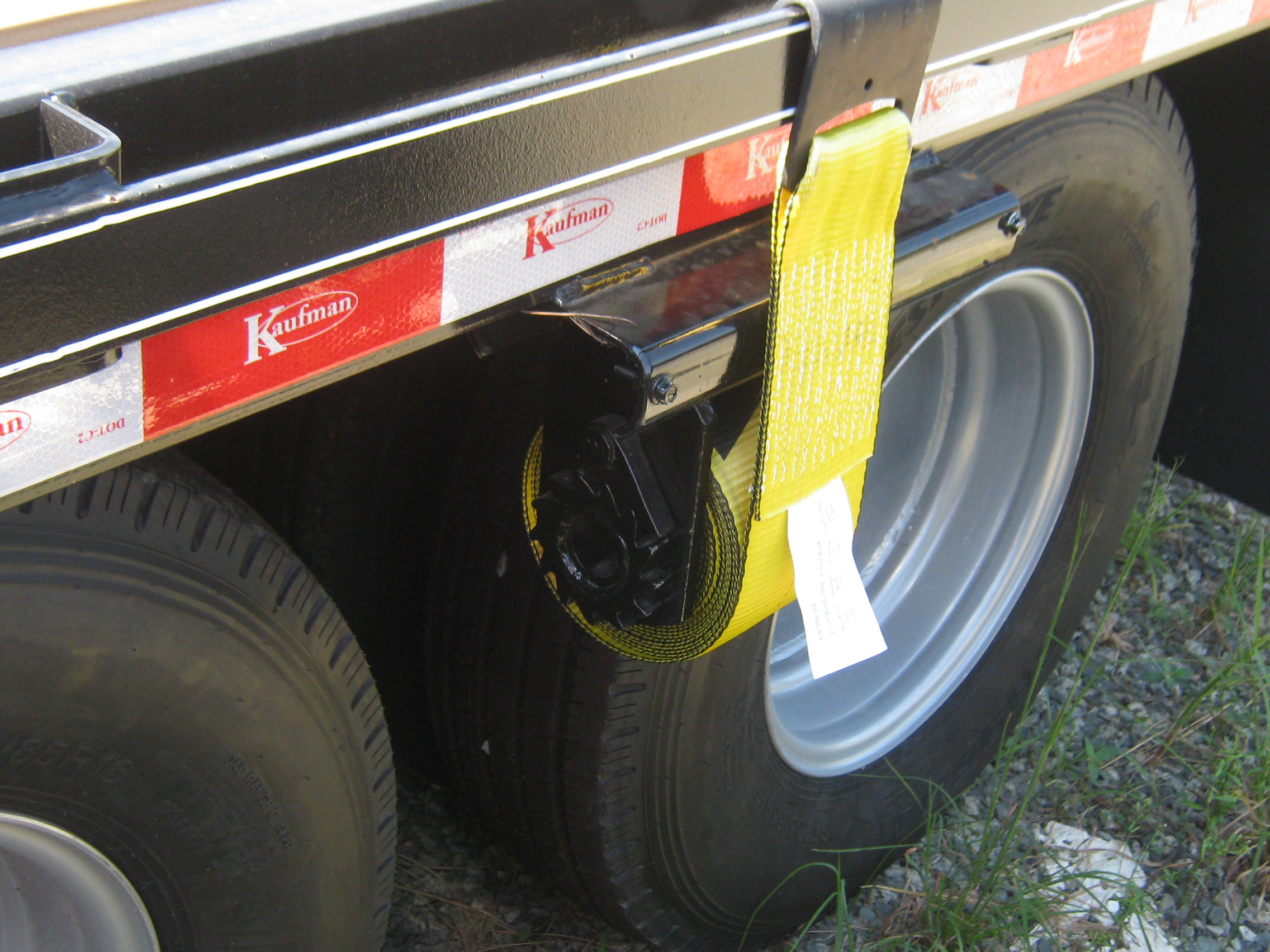

| Sliding 4 in. ratchets (each) - requires sliding track | $30.00 |
| Sliding track for ratchets (per foot) | $30.00 |
| No dovetail and no ramps (Straight deck) *Special deposit required | $-99.00 |
| Pop-up cleated dovetail (3 piece) | $500.00 |
| Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron) | $3,400.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FHGP-15K-30D-FET | 30 ft. | $20,990.00 | Frame: W14x22 PPF I-beam Neck Uprights: W14x26 PPF I-beam Neck: W12x19 PPF I-beam Crosspiece: 4 in. Channel Centers: 16 in. Pierced Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel |
| FHGP-15K-35D-FET | 35 ft. | $21,990.00 | Frame: W14x26 PPF I-beam - with Torque Tube Neck Uprights: W14x26 PPF I-beam Neck: W12x19 PPF I-beam Crosspiece: 4 in. Channel Centers: 16 in. Pierced Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel |
| FHGP-15K-40D-FET | 40 ft. | $22,990.00 | Frame: W14x26 PPF I-beam - with Torque Tube Neck Uprights: W14x26 PPF I-beam Neck: W12x19 PPF I-beam Crosspiece: 4 in. Channel Centers: 16 in. Pierced Side Rail: 8 in. Channel Ramp Runners: 6 in. Channel |
