Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer – Two 10K
$14,990.00 Factory Direct
Kaufman Trailer’s Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer is our most popular heavy duty gooseneck model! It has many of our best features included as standard and is a great value for the commercial user who wants a long life trailer. Construction starts with one piece 12″ at 16 lb./ft. high tensile main beams. We use pierced crossmember construction on 16″ centers. There is 25′ of flatbed with a 5′ cleated iron dovetail and 5′ cleated spring assist ramps for easy loading of equipment. A popular option is the Monster Ramp lay-flat ramps/dovetail. 30′ is the standard length with a 12″x16 lb. I-beam frame. 35′ and 40′ are optional lengths and the frame upgrades to 12″x19 lb. The 10K dual wheel electric brake axles feature heavy duty slipper spring suspension, oil bath lubrication, and radial tires. Wiring on the Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer is a sealed modular harness with lifetime LED lights. You can kiss lighting problems goodbye! Dual heavy duty 12K drop foot jacks, a tool tray with lockable lid, stake pockets with rub rail, treated flooring, and an adjustable 2 5/16″ gooseneck coupler complete the standard features on this Deluxe 25000 GVWR 30 ft Tandem Dual Gooseneck Trailer .
See options for 12,000 lb. axles and 17.5″ radial tires. The GVWR does not increase as the frame size limits the GVWR as well as the 25,000 lb. coupler.
VIEW OUR ENTIRE LINE OF GOOSENECK TRAILERS
CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444
Specifications| G.V.W.R. | 25,000 lb. Load capacity is 19,000 lb. with a 6,000 lb. hitch load. |
| Electrical | Sealed modular wiring harness with LED lights |
| Frame | 12 in. Pierced i-beam, with 3 in. channel crossmembers 16 in. on center |
| Dovetail | 5 ft. Self-cleaning cleated angle iron |
| Upper Deck | N/A |
| Side Rail | 6 in. channel |

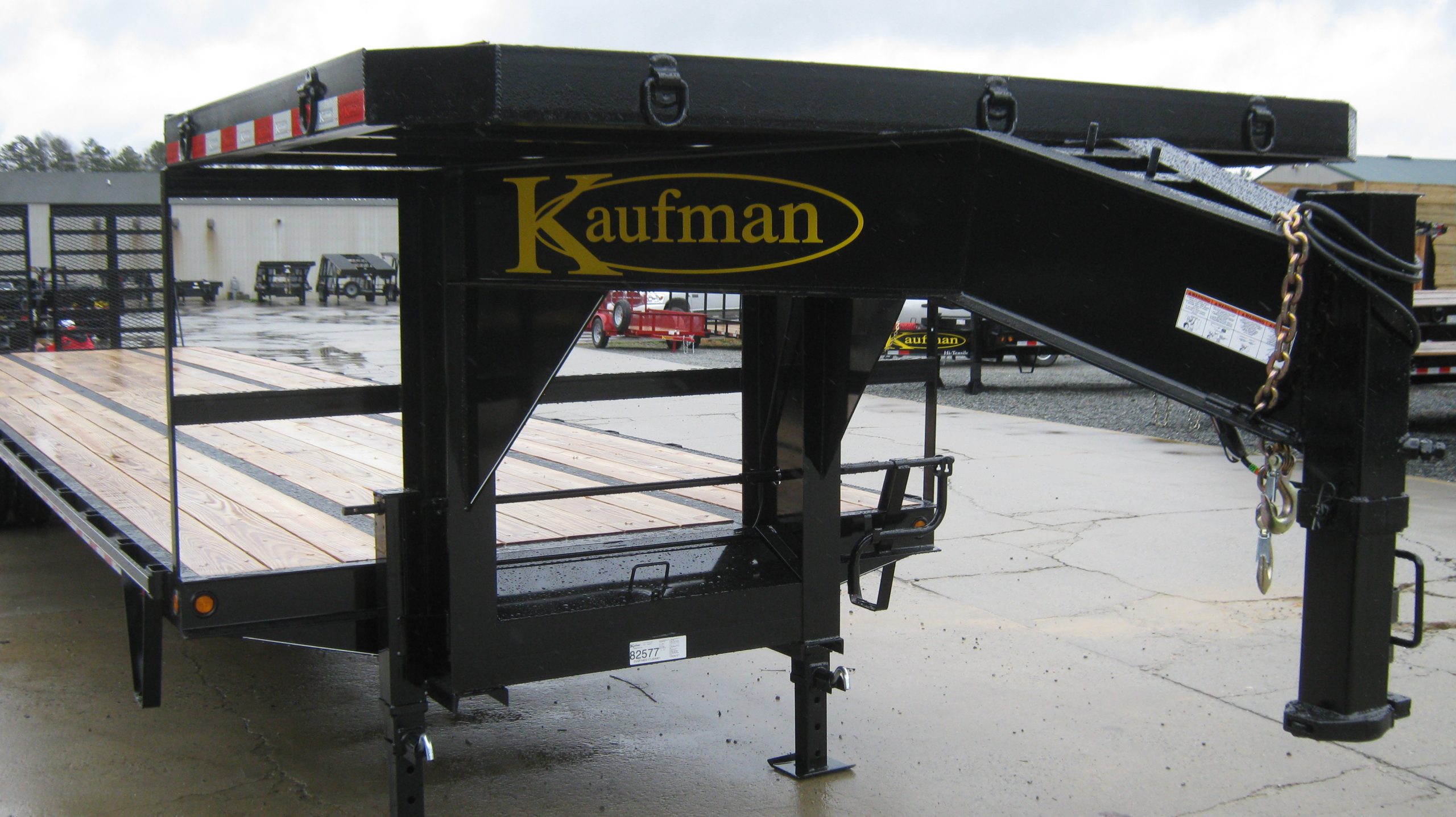

| Tongue | 12 in. I-beam gooseneck |
| Tires | 235/80 R16 LRE (3,097 lb.) |
| Floors | 2 in. Treated Wood |
| Coupler | 2-5/16 in. 25,000 GVWR adjustable ball coupler or SAE 2 in. kingpin |
| Safety Chains | Heavy duty safety chains |
| Ramps | 60 in. x 18 in. Heavy duty flip up ramps, with spring assist |
| Tie Downs | Stake pockets and Rubrail |
| Deck Length | 30 ft. (25 ft. flat + 5 ft. dovetail) |
| Deck Height | 37 in. With side steps standard |
| Deck Width | Maximum 102 in. |
| Fenders | N/A |
| Lower Deck | N/A |
| Brakes | All wheel electric brakes |
| Tailgate | N/A |

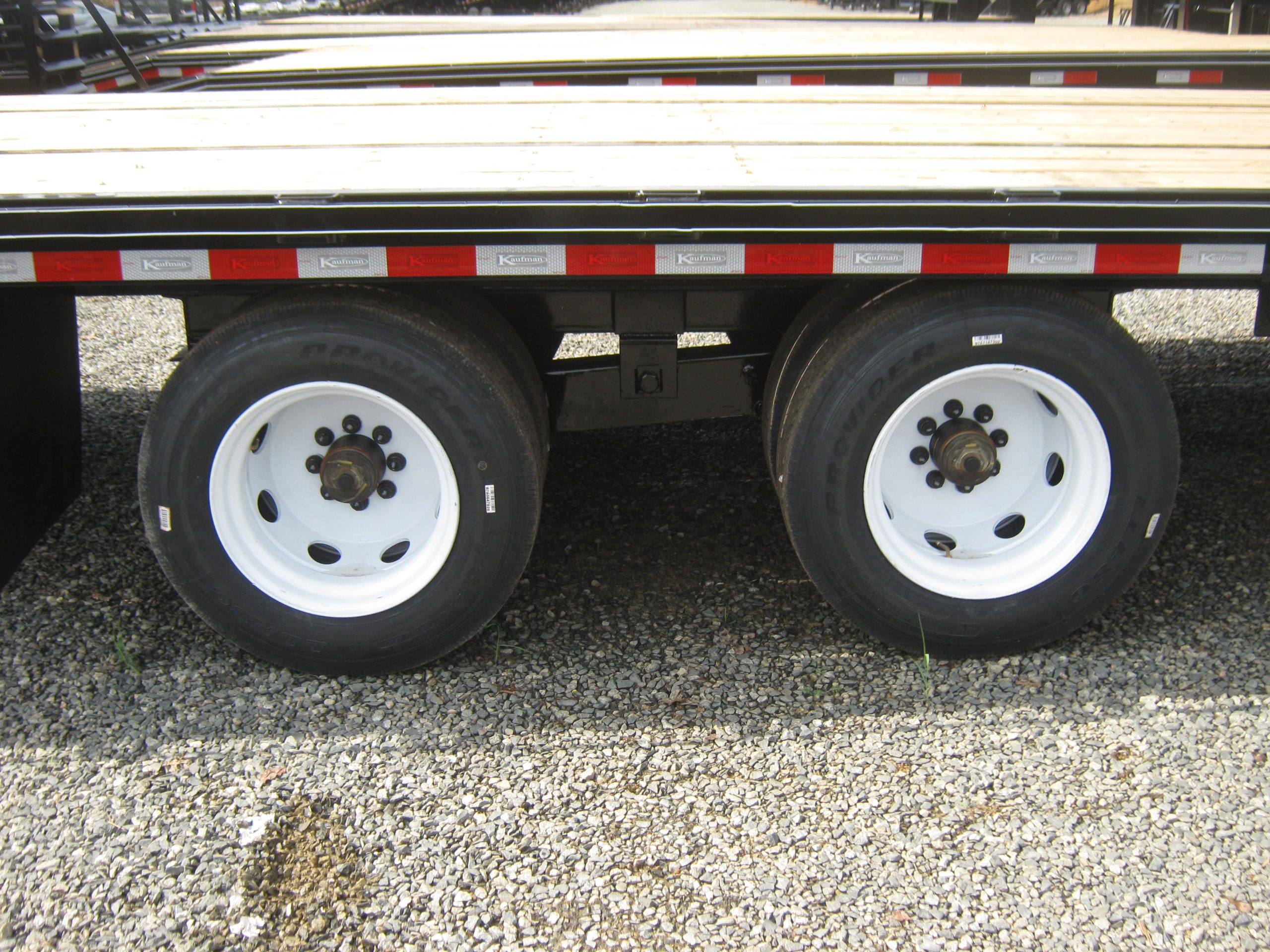

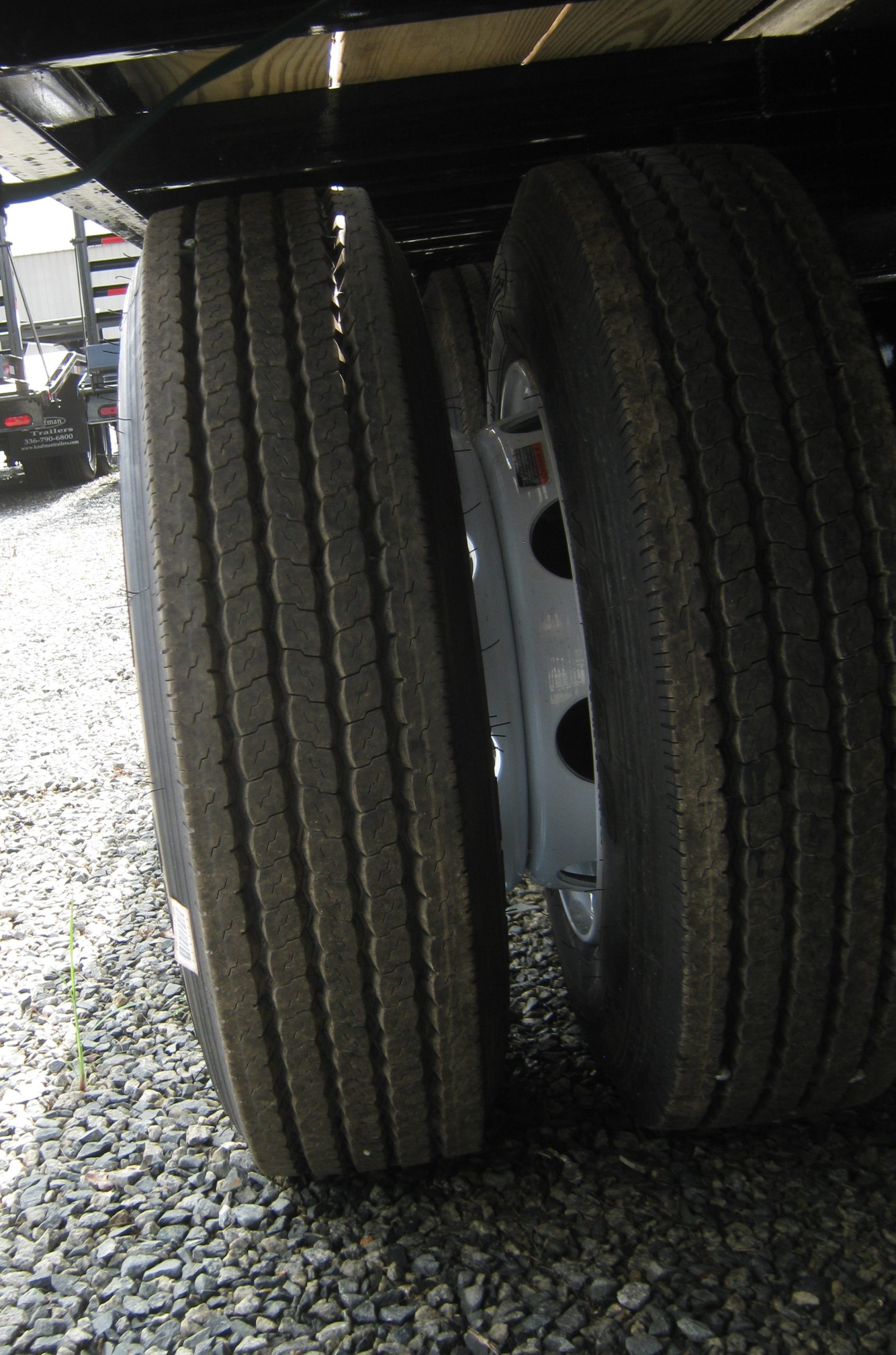

| Wheels | Heavy duty bud style dual wheels |
| Jack | Dual 12,000 lb. drop foot jacks |
| Axles | 2- 10,000 lb. Oil bath axles |

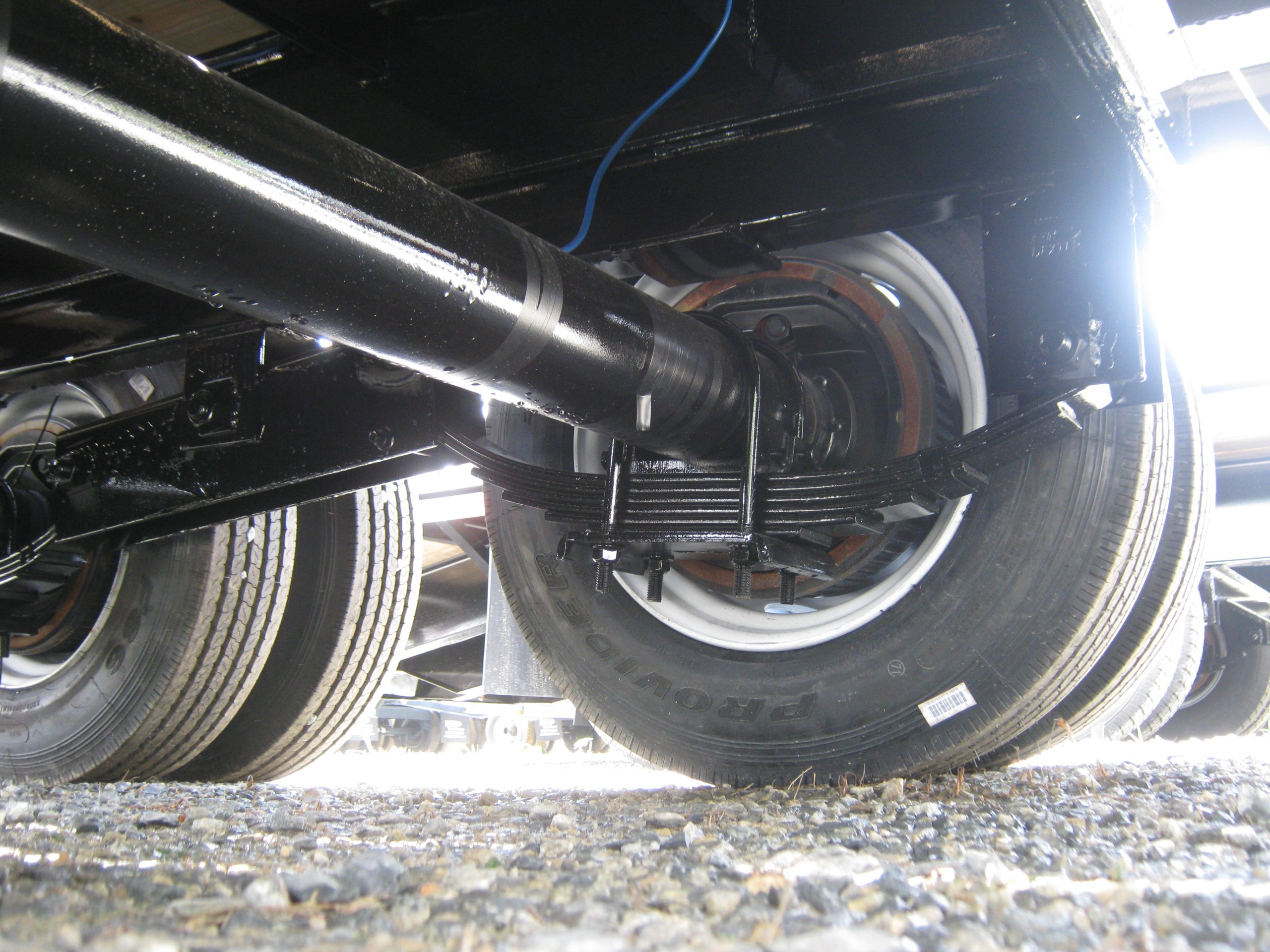

| Suspension | Slipper springs |
| Toolbox | Chain box with lockable lid standard |
| Finish | Primed, 2 coats of automotive grade enamel, pin striped |
| Spare tire and rim | $260.00 |
| 9K Winch | $1,250.00 |

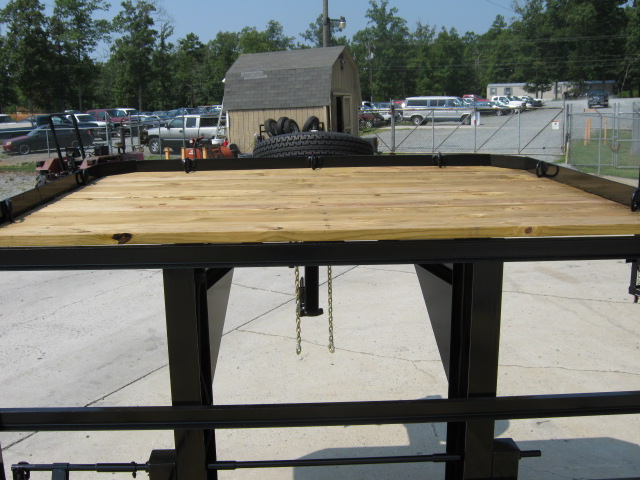

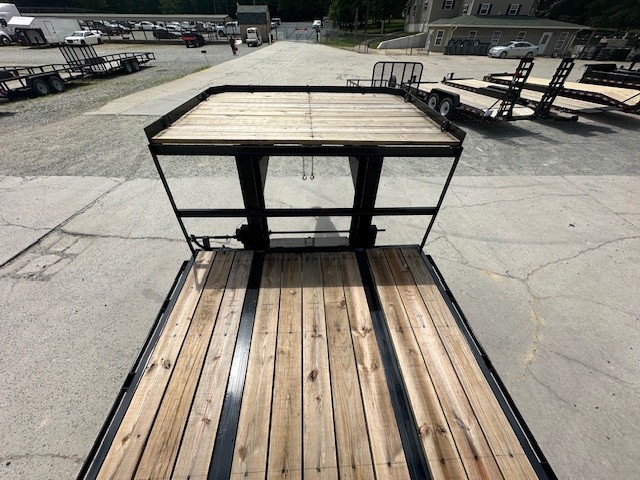

| 6 ft. x 8 ft. Deck on neck | $600.00 |
| Torque tube - recommended for deck on neck | $100.00 |
| Fork holders (requires measurement information) | $200.00 |
| Two 12K Dexter axles with 215/75 R17.5 Load Range H Tires | $3000.00 |

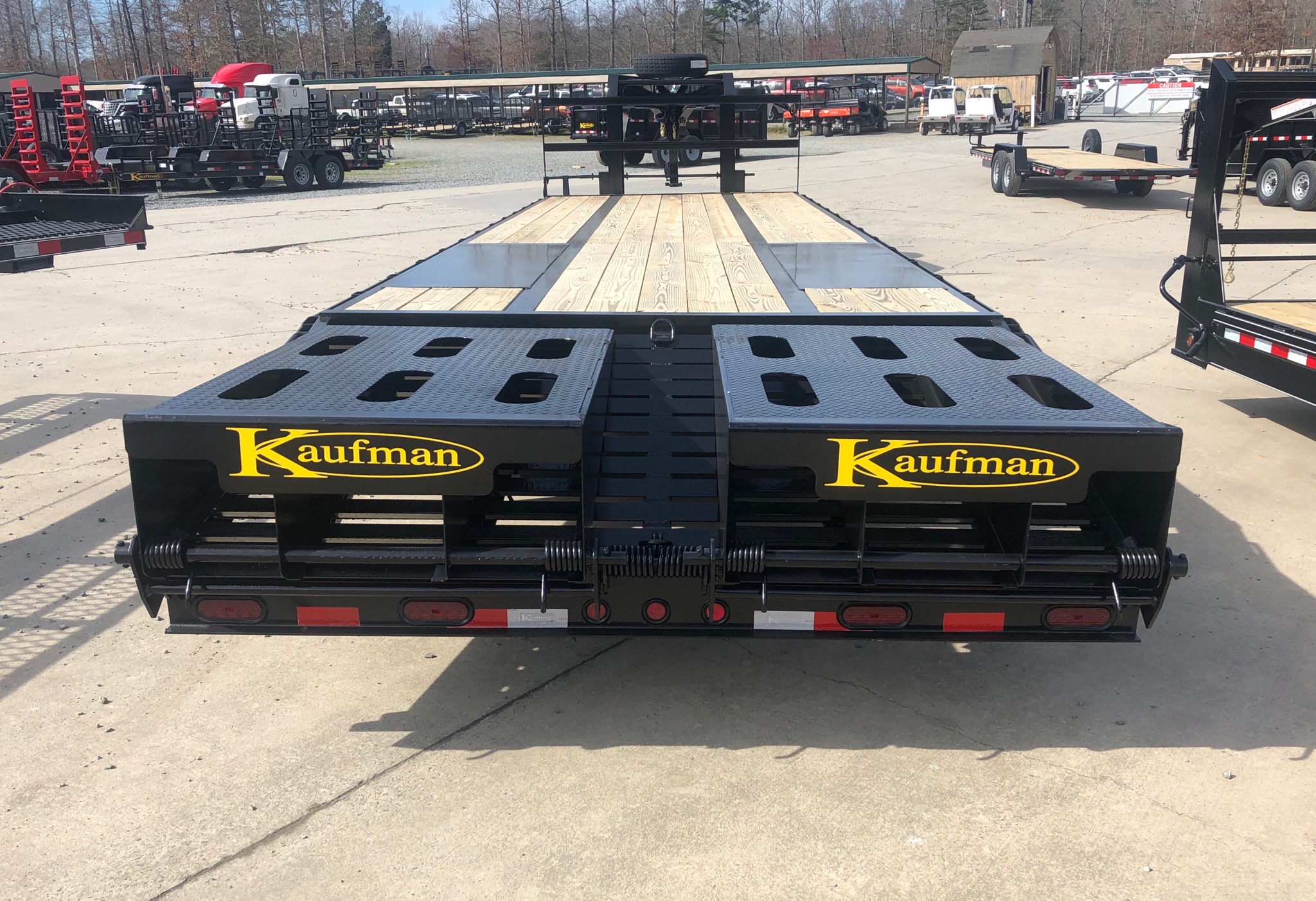

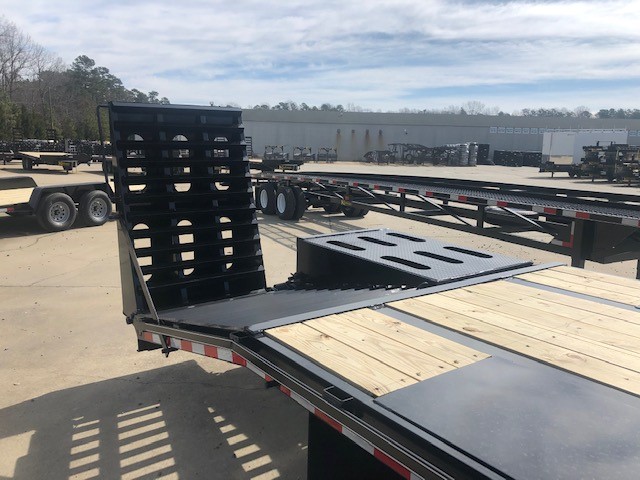

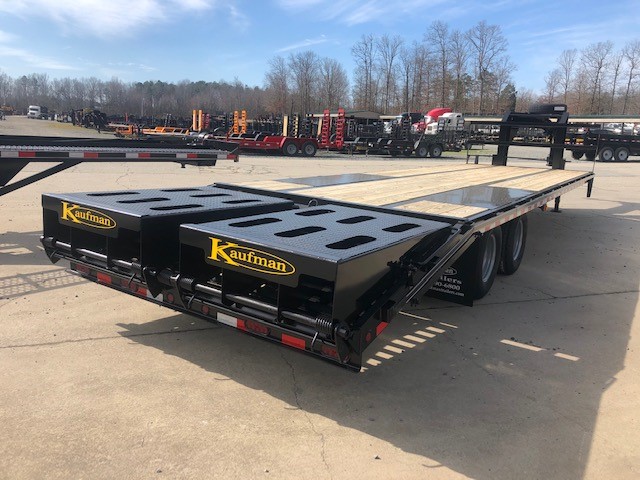

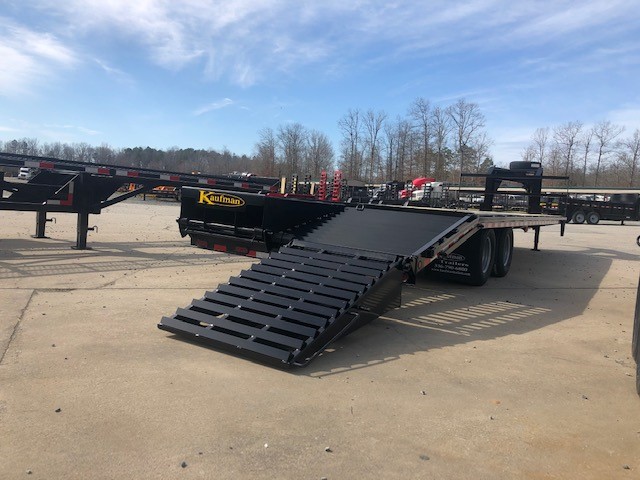

| Full Width MEGA RAMPS with spring assist in both directions | $1,600.00 |
| Load Range G (14 ply rating) all-steel radials | $1000.00 |
| Load Range G (14 ply rating) all-steel radial - spare tire | $330.00 |

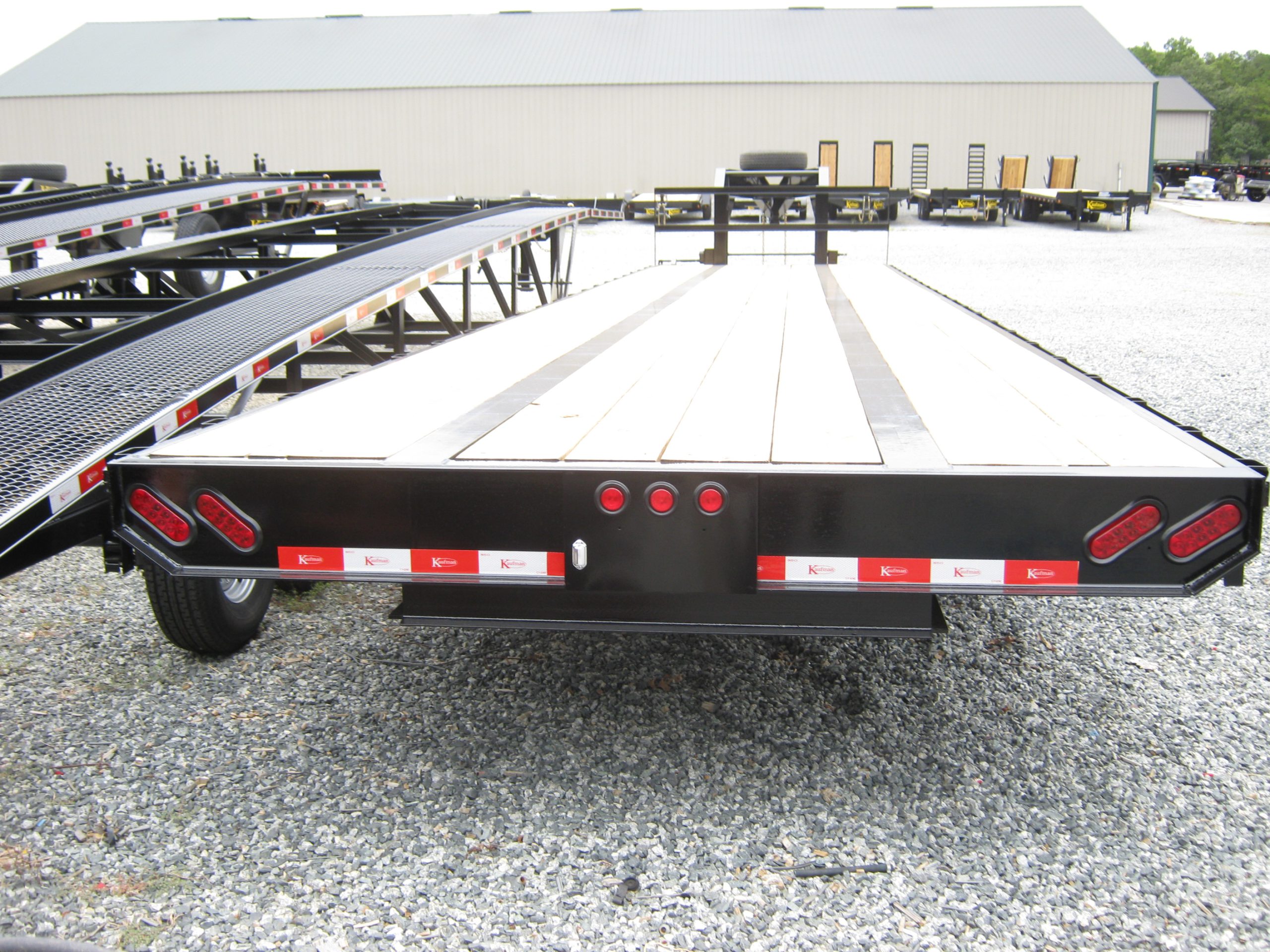

| No dovetail and no ramps (Straight deck) *Special deposit required | $-99.00 |
| Pop-up cleated dovetail (3 piece) | $500.00 |
| Slide-in ramp for tri-axle tractor | $200.00 |
| Third swing up ramp | $200.00 |
| Self-contained hydraulic ramps, with sizes up to 34.5 in. x 96 in. for wood lined. And 33 in. x 96 in. for self-cleaning (cleated angle iron) | $3,400.00 |
| Sliding 4 in. ratchets (each) - requires sliding track | $30.00 |
| Sliding track for ratchets (per foot) | $30.00 |
| Two speed 12K jacks | $150.00 |
| Kingpin coupler | $100.00 |
| Product Number | Length | Price | Additional Info |
|---|---|---|---|
| FHGP-10K-25D | 25 ft | $14,490.00 | Frame: W12x16 PPF I-beam Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel |
| FHGP-10K-30D | 30 ft. | $14,990.00 | Frame: W12x16 PPF I-beam Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel |
| FHGP-10K-35D | 35 ft. | $15,990.00 | Frame: W12x19 PPF I-beam - with Torque Tube Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel |
| FHGP-10K-40D | 40 ft. | $16,990.00 | Frame: W12x19 PPF I-beam - with Torque Tube Neck Uprights: W14x22 PPF I-beam Neck: W12x16 PPF I-beam Crosspiece: 3 in. Channel Centers: 16 in. Pierced Side Rail: 6 in. Channel Ramp Runners: 4 in. Channel |
