Diamond Floor Tilt Car Trailer
$6,990.00 Factory Direct

Our diamond floor tilt car trailers are manufactured with a rigid 5″ channel frame and tongue. The 10,000 GVWR model adds 5.2K axles with 225/75 R15 LRD radial tires. The entire bed tilts for loading and is built with all tubing steel construction. 24″ toe plates and the gradual loading angle, made possible by a total bed length (with toe plates) of 22′, make it possible to load sports cars with low clearance that will not load on standard ramp and dovetail car trailers. A hydraulic damper cushions the lowering of the bed during loading. Standard features on this high quality tilt trailer include a swing up jack, heavy duty diamond plate fenders, four-wheel brakes, radial tires, stake pockets with rub rail, and a sealed modular wiring harness with lifetime LED lights.

VIEW OUR ENTIRE LINE OF CAR TRAILERS

CALL CUSTOMER SERVICE WITH QUESTIONS: 866-455-7444

Specifications
G.V.W.R.10,000 lb.
ElectricalSealed modular wiring harness with LED lights
Frame5 in. channel, and 6 in. x 2 in. tubing frame on tilting bed
Dovetail24 in. toeplates
Upper DeckN/A
Side RailN/A
Tongue5 in. Channel
Tires225/75 R15 (2600 lb.) Radial
FloorsFull diamond plate with 3 in. channel crossmembers 16 in. oncenter
Coupler2-5/16 in. Adjustable coupler
Safety ChainsHeavy duty safety chains
RampsN/A
Tie DownsStake pockets and Rubrail
Deck Length19 ft. 8 in. + 28 in. toeplates (with hydraulic damper cylinder)
Deck HeightN/A
Deck Width82 in. Between fenders
FendersHeavy duty diamond plate fenders (6IN. HIGH OVER DECK)
Lower DeckN/A
BrakesBoth braking axles, Standard
TailgateN/A
WheelsSilver or white mod (Based on stock)
Jack2,000 lb. Swing up jack
Axles2-5,200 lb. e-z lube axles
SuspensionDouble eye springs
ToolboxN/A
FinishPrimed, 2 coats of automotive grade enamel, pin striped
Additional Options
Spare tire and rim$180.00

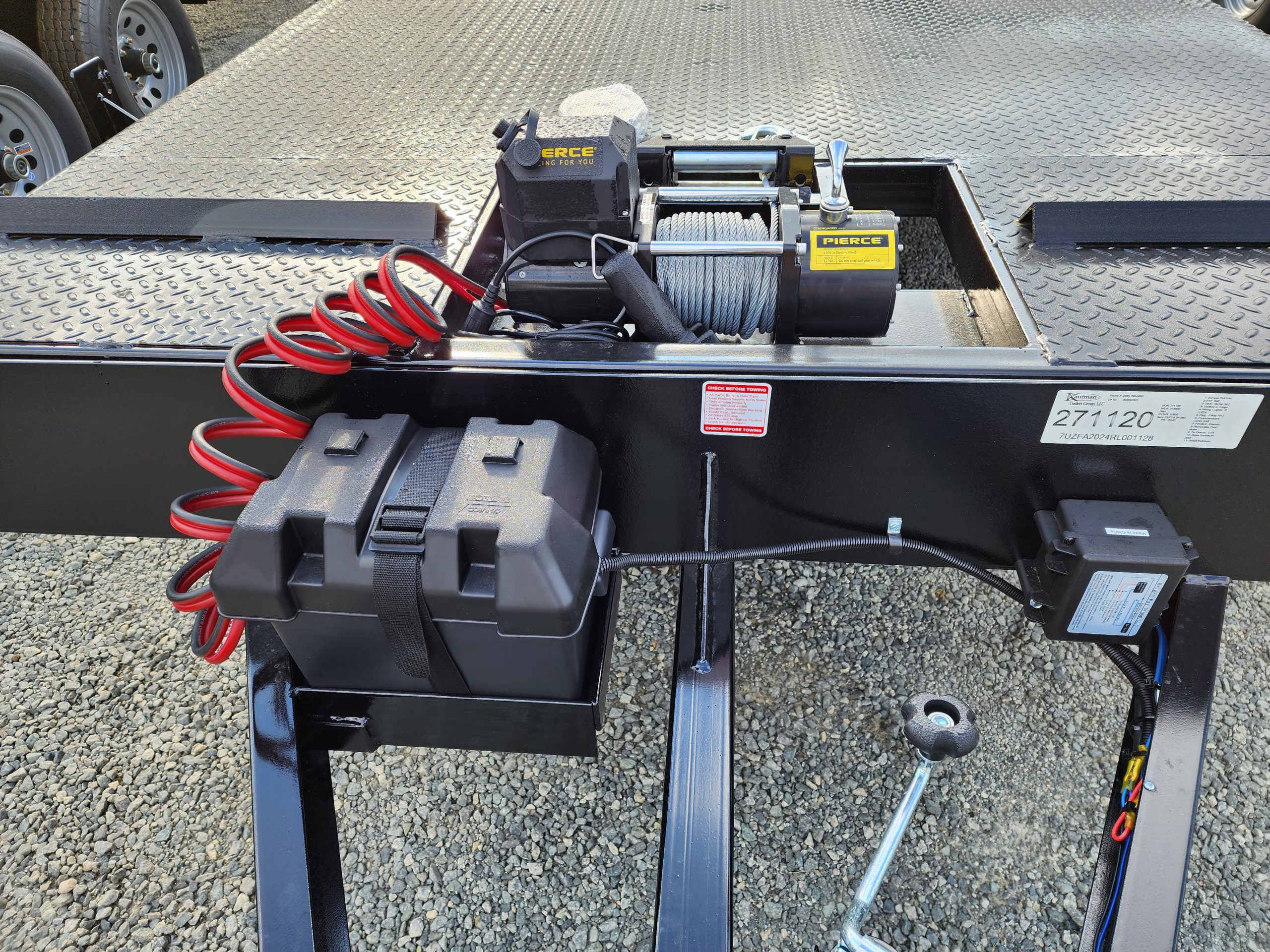

6K Winch$950.00
Gooseneck$1000.00
